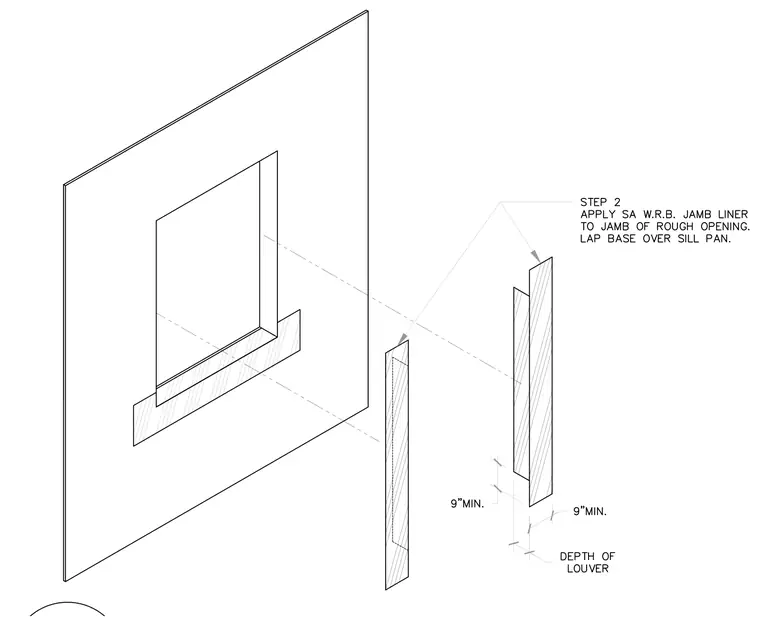

Step two of the installation sequence requires applying a self-adhered weather-resistive barrier jamb liner to the jamb of the rough opening. The membrane laps over the sill pan at the bottom. Dimensions indicate a nine inch minimum extension related to the depth of the louver.
