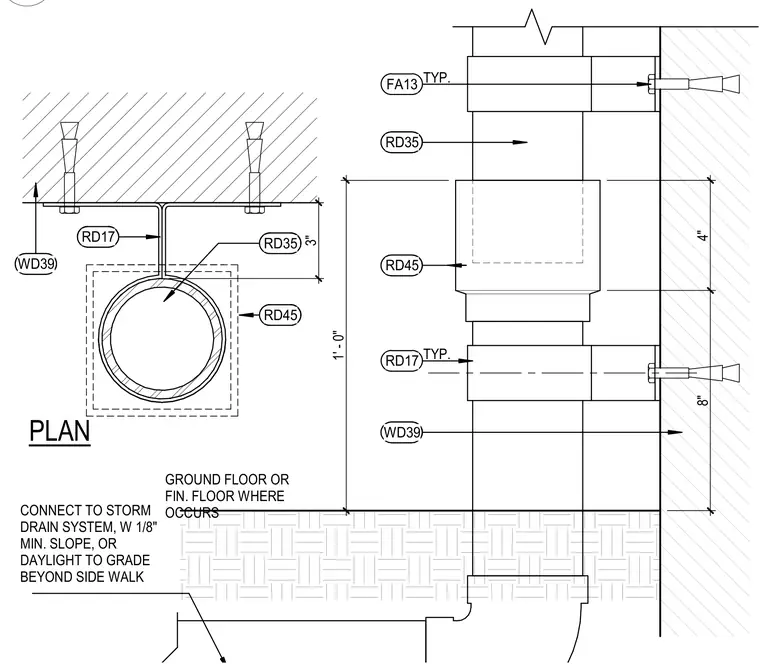

A vertical downspout is secured to the exterior wall using pipe brackets spaced with standard mounting hardware. The assembly connects to the storm drain system maintaining a one-eighth inch minimum slope or daylighting to grade beyond the sidewalk where applicable. A ground floor or finished floor line is indicated where the transition occurs.
PLAN GROUND FLOOR OR FIN. FLOOR WHERE OCCURS WD39 RD35 RD35 WD39 8" 4" 1' - 0" RD45 CONNECT TO STORM DRAIN SYSTEM, W 1/8" MIN. SLOPE, OR DAYLIGHT TO GRADE BEYOND SIDE WALK RD17 RD45 TYP. RD17 TYP. FA13 3"
