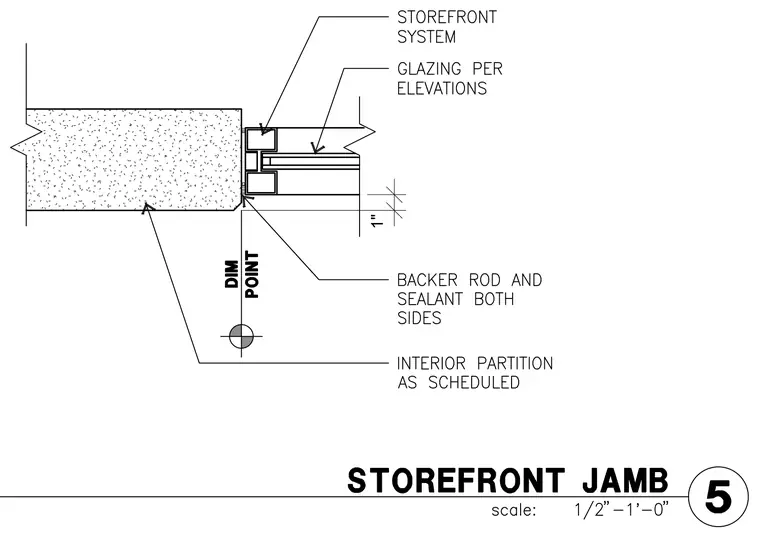

An aluminum storefront system abuts an interior partition as scheduled, maintaining a one-inch dimension point clearance. Glazing is installed per elevations within the storefront framing. The joint between the storefront frame and the interior partition wall is sealed on both sides with backer rod and sealant.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
