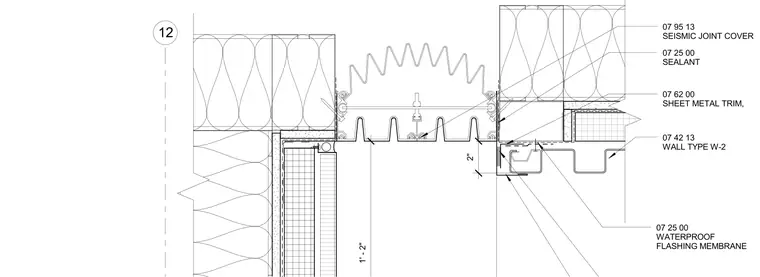

A seismic joint cover spans the gap between adjacent wall assemblies, flanked by waterproof flashing membrane and sealant at the perimeter. Sheet metal trim finishes the edge adjacent to wall type W-2. The assembly accommodates building movement while maintaining weatherproofing and thermal integrity.
1' - 2" 2" 07 42 13 WALL TYPE W-2 07 62 00 SHEET METAL TRIM, 12 07 95 13 SEISMIC JOINT COVER 07 25 00 WATERPROOF FLASHING MEMBRANE 07 25 00 SEALANT
