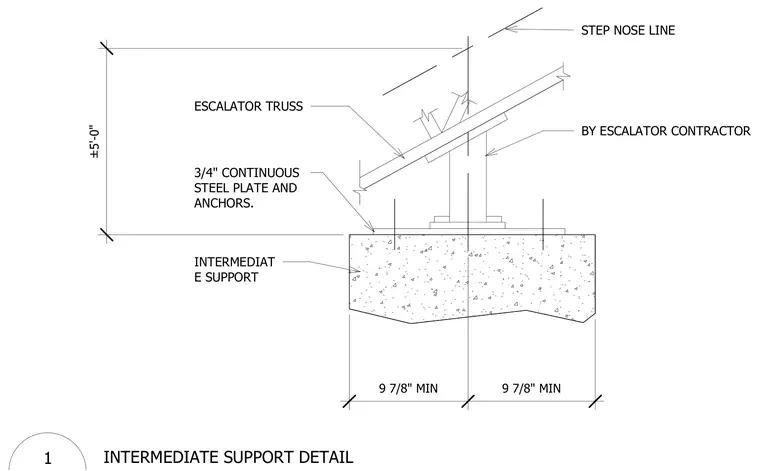

An escalator truss bears onto an intermediate support assembly positioned at a plus-or-minus five-foot dimension from the step nose line. A three-quarter-inch continuous steel plate with anchors provides the base connection atop the intermediate support structure, with work executed by the escalator contractor. Dimensions indicate a minimum nine-and-seven-eighths-inch spacing from centerline to support edges.
±5'-0" STEP NOSE LINE BY ESCALATOR CONTRACTOR ESCALATOR TRUSS 3/4" CONTINUOUS STEEL PLATE AND ANCHORS. INTERMEDIAT E SUPPORT 9 7/8" MIN 9 7/8" MIN 1 INTERMEDIATE SUPPORT DETAIL
