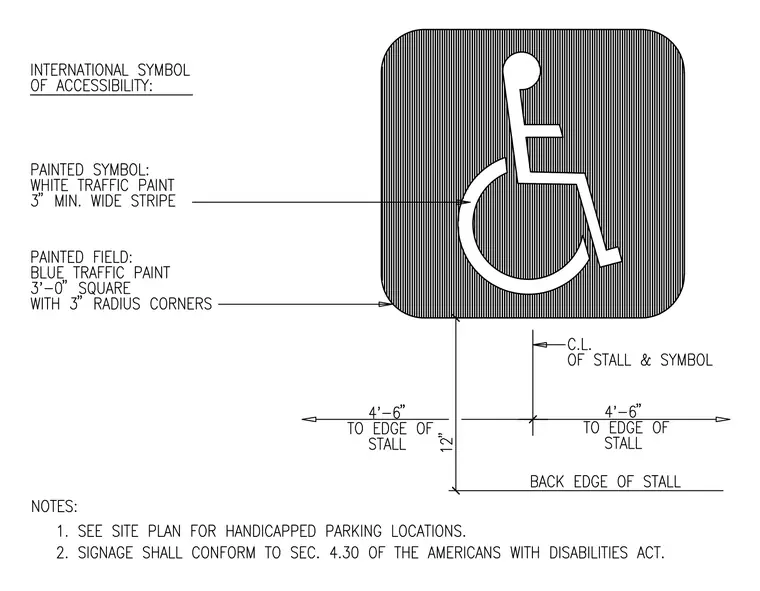

An international symbol of accessibility pavement marking layout requires a blue traffic paint square field measuring three feet zero inches square with three-inch radius corners, centered on the parking stall centerline. The painted symbol is executed in white traffic paint with a minimum stripe width of three inches. Dimensions locate the blue field twelve inches forward from the back edge of the stall and four feet six inches to the edge of the stall on each side. Two general notes specify that handicapped parking locations are per the site plan and that signage must conform to Section 4.30 of the Americans with Disabilities Act.
