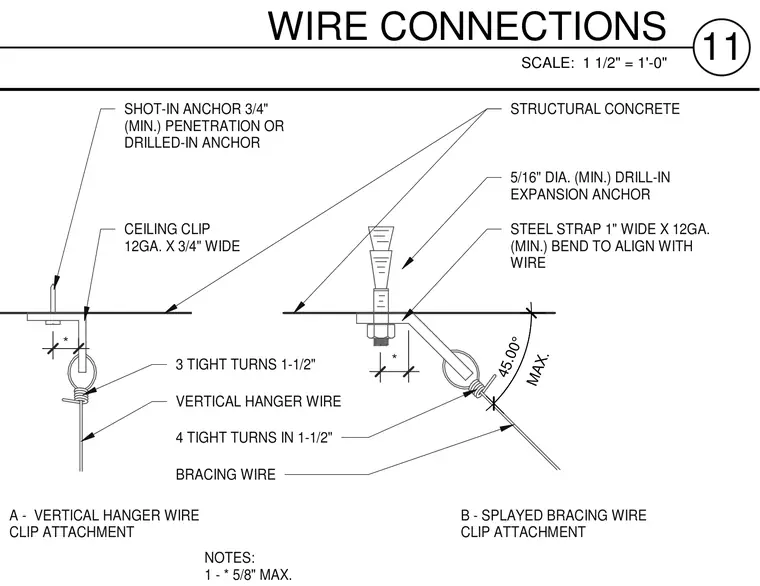

Suspended ceiling wire attachments anchored to a structural concrete ceiling comprise two conditions: a vertical hanger wire and a splayed bracing wire. The vertical hanger wire clip attachment utilizes a twelve-gauge by three-quarter-inch wide ceiling clip secured to the concrete with a shot-in anchor requiring three-quarter-inch minimum penetration, or an approved drilled-in anchor. The vertical wire features three tight turns in one and one-half inches. The splayed bracing wire clip attachment is anchored with a five-sixteenth-inch diameter minimum drill-in expansion anchor securing a one-inch wide by twelve-gauge minimum steel strap bent to align with the wire. The bracing wire is oriented at a maximum angle of forty-five degrees and features four tight turns in one and one-half inches, with a maximum five-eighths-inch clearance dimension noted.
3 TIGHT TURNS 1-1/2" VERTICAL HANGER WIRE 4 TIGHT TURNS IN 1-1/2" BRACING WIRE MAX. 45.00° * * STEEL STRAP 1" WIDE X 12GA. (MIN.) BEND TO ALIGN WITH WIRE 5/16" DIA. (MIN.) DRILL-IN EXPANSION ANCHOR STRUCTURAL CONCRETE CEILING CLIP 12GA. X 3/4" WIDE SHOT-IN ANCHOR 3/4" (MIN.) PENETRATION OR DRILLED-IN ANCHOR A - VERTICAL HANGER WIRE CLIP ATTACHMENT B - SPLAYED BRACING WIRE CLIP ATTACHMENT NOTES: 1 - * 5/8" MAX. SCALE: 1 1/2" = 1'-0" 11 WIRE CONNECTIONS
