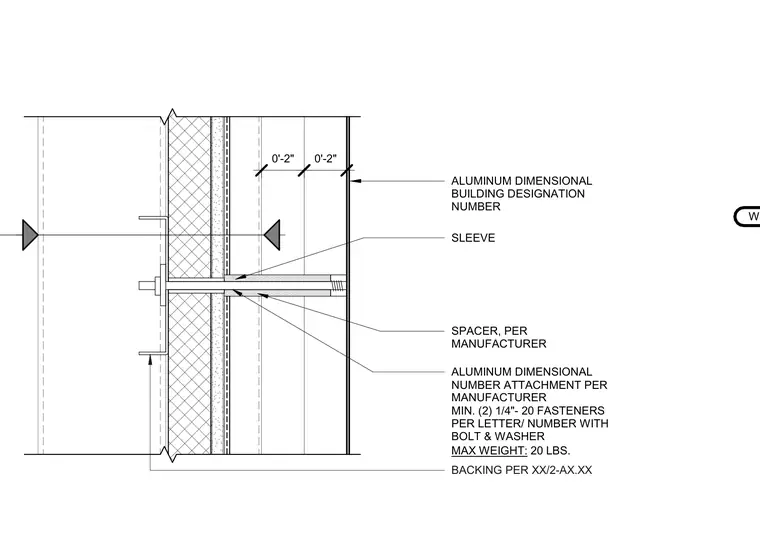

An aluminum dimensional building designation number is mounted to a wall assembly using a sleeve, spacer, and minimum two quarter-twenty fasteners per letter or number with bolt and washer. The attachment includes backing per structural specifications and accommodates a maximum weight of twenty pounds.
W4 ALUMINUM DIMENSIONAL BUILDING DESIGNATION NUMBER ALUMINUM DIMENSIONAL NUMBER ATTACHMENT PER MANUFACTURER MIN. (2) 1/4"- 20 FASTENERS PER LETTER/ NUMBER WITH BOLT & WASHER SPACER, PER MANUFACTURER BACKING PER XX/2-AX.XX MAX WEIGHT: 20 LBS. SLEEVE 0'-2" 0'-2"
