This interior partition wall assembly consists of eight-inch cold-formed metal stud framing filled with sound attenuation batt insulation. Each side of the framing receives a half-inch backer board layer followed by five-inch gypsum wall board panels. Final surface treatments are applied according to the interior elevations and finish schedule. Stud spacing is determined by the structural drawings.

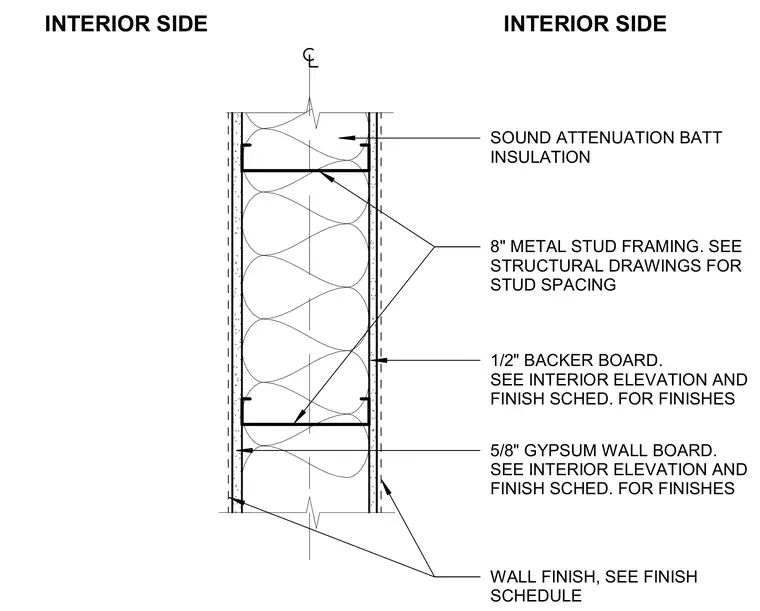

INTERIOR SIDE 8" METAL STUD FRAMING. SEE STRUCTURAL DRAWINGS FOR STUD SPACING SOUND ATTENUATION BATT INSULATION INTERIOR SIDE 1/2" BACKER BOARD. SEE INTERIOR ELEVATION AND FINISH SCHED. FOR FINISHES 5/8" GYPSUM WALL BOARD. SEE INTERIOR ELEVATION AND FINISH SCHED. FOR FINISHES WALL FINISH, SEE FINISH SCHEDULE
