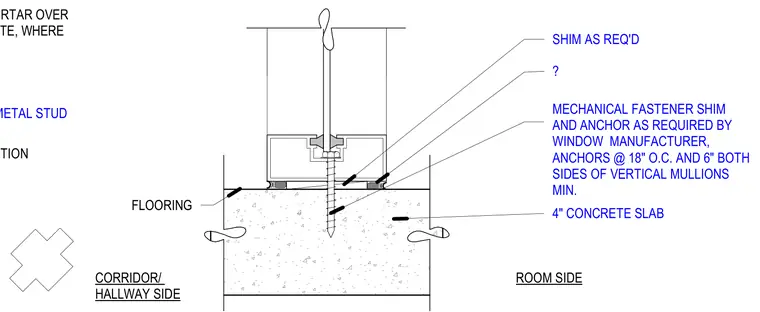

An interior storefront sill rests on a minimum 4-inch concrete slab separating a corridor or hallway side from a room side. The storefront frame is secured using mechanical fasteners and shims as required by the window manufacturer, with anchors spaced at 18 inches on center and 6 inches on both sides of vertical mullions. Flooring finishes apply to the concrete substrate on the corridor side, while the wall assembly above features 5/8-inch gypsum board over metal studs with sound batt insulation.
SOUND BATT INSULATION TILE ON THINSET MORTAR OVER SPECIFIED SUBSTRATE, WHERE 5/8" GYP. BD. OVER METAL STUD CORRIDOR/ HALLWAY SIDE ROOM SIDE FLOORING SHIM AS REQ'D ? MECHANICAL FASTENER SHIM AND ANCHOR AS REQUIRED BY WINDOW MANUFACTURER, ANCHORS @ 18" O.C. AND 6" BOTH SIDES OF VERTICAL MULLIONS MIN. 4" CONCRETE SLAB
