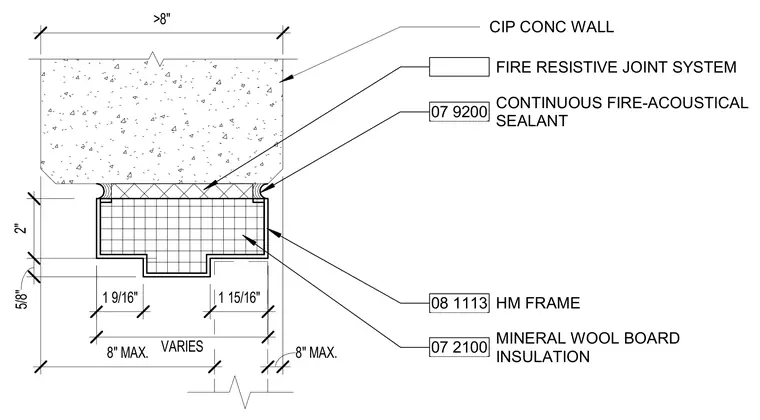

A hollow metal frame is installed below a cast-in-place concrete wall, with mineral wool board insulation packed in the head profile. A continuous fire-acoustical sealant is applied at the interface between the frame and the concrete substrate. A fire-resistive joint system fills the gap above the frame assembly.
VARIES 1 9/16" 1 15/16" 5/8" 2" >8" 08 1113 HM FRAME CIP CONC WALL 07 9200 CONTINUOUS FIRE-ACOUSTICAL SEALANT 07 2100 MINERAL WOOL BOARD INSULATION 8" MAX. 8" MAX. FIRE RESISTIVE JOINT SYSTEM
