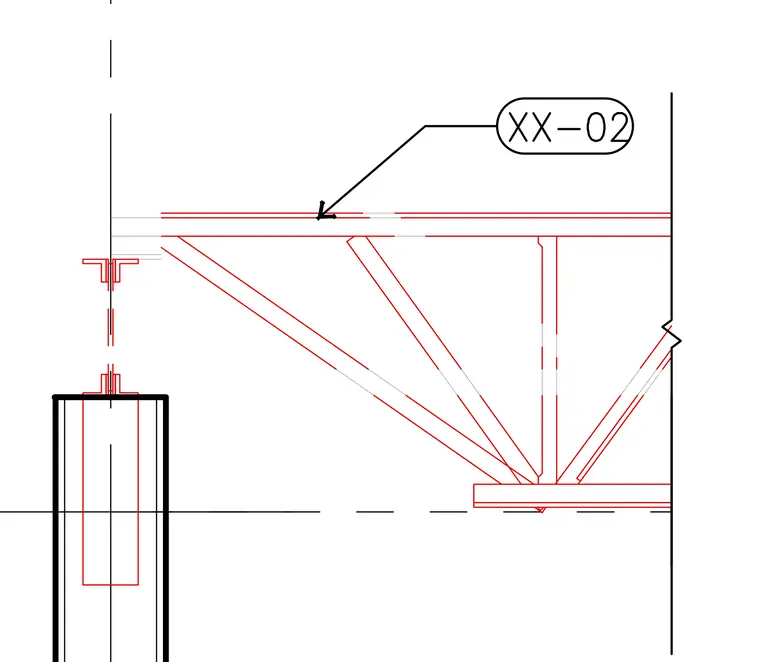

An open web steel joist bears onto a vertical support element with a welded connection. A callout bubble references detail XX-02 at the top chord bearing location. Centerlines and alignment grids establish positioning for the structural members.
