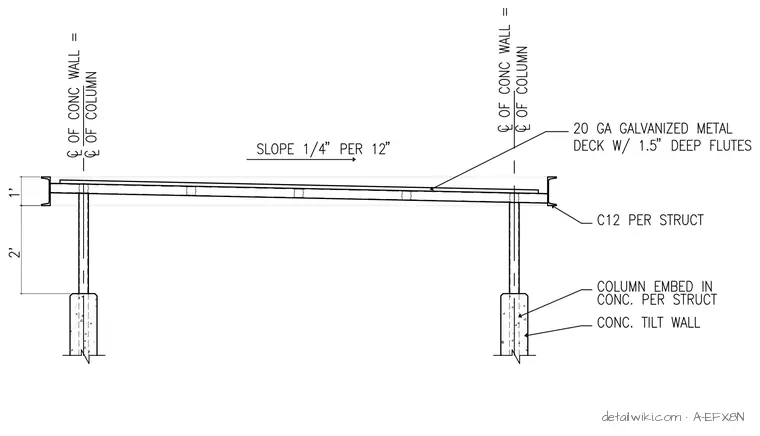

This canopy assembly features a 20-gauge galvanized metal deck with 1.5-inch deep flutes, sloped at 1/4 inch per 12 inches. The deck is supported by C12 channels sized per structural drawings. These channels are carried by columns that are embedded into concrete tilt-up walls per structural specifications. The assembly maintains a 2-foot vertical clearance from the top of the concrete wall to the underside of the canopy framing.
