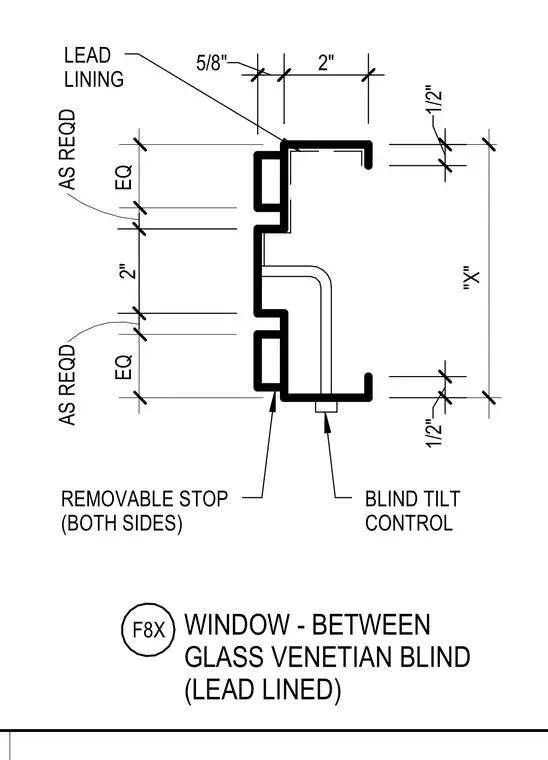

This window detail incorporates a between-glass venetian blind system with built-in lead lining for radiation shielding or specialized room containment. Removable stops are provided on both sides of the frame to allow access to the blind mechanism. A blind tilt control extends through the assembly as required. Frame dimensions include two-inch sections and equal spacing tiers.
1/2" 1/2" 2" 5/8" 2" WINDOW - BETWEEN GLASS VENETIAN BLIND (LEAD LINED) F8X REMOVABLE STOP (BOTH SIDES) BLIND TILT CONTROL LEAD LINING AS REQD AS REQD EQ EQ "X"
