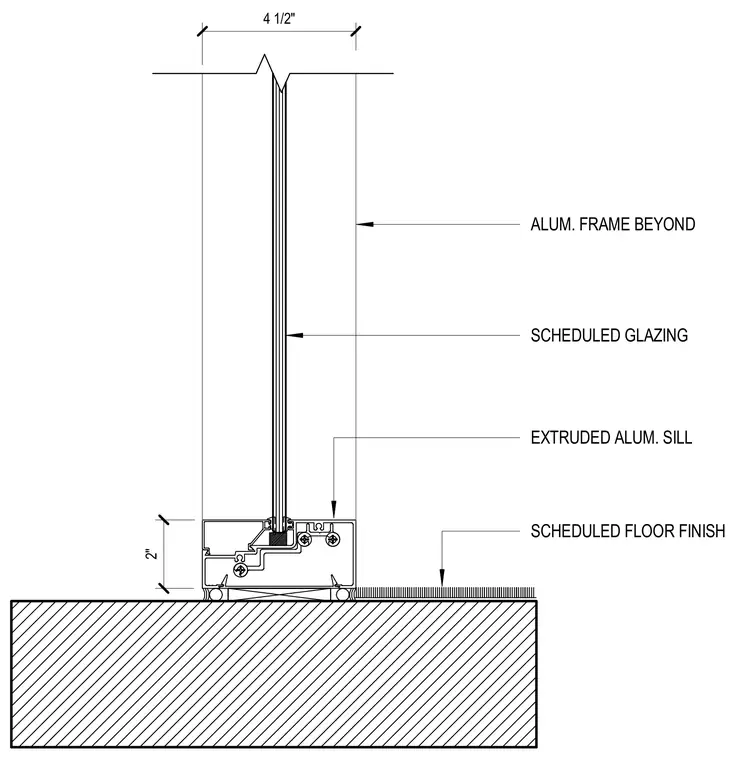

An extruded aluminum sill supports scheduled glazing and an aluminum frame beyond, positioned above a scheduled floor finish. The assembly stands four and one-half inches wide with the sill measuring two inches in height.
SCHEDULED FLOOR FINISH 2" 4 1/2" EXTRUDED ALUM. SILL SCHEDULED GLAZING ALUM. FRAME BEYOND
