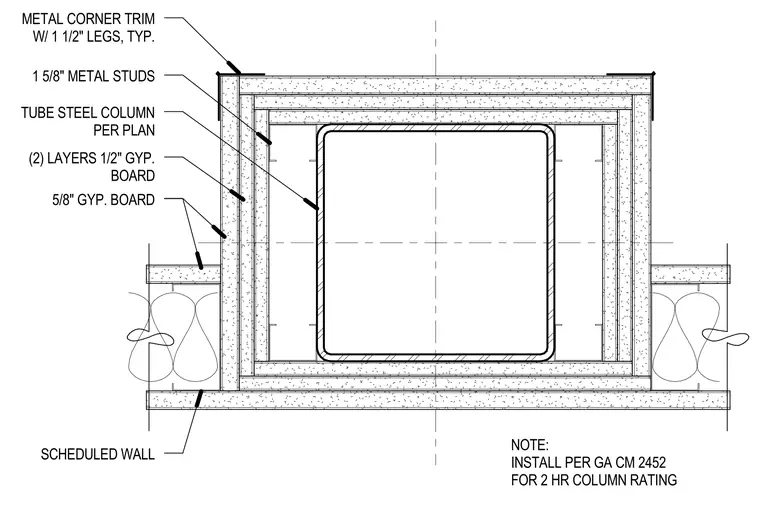

A two-hour fire-rated steel column assembly integrated with a scheduled wall. A hollow structural section tube steel column is framed with one-and-five-eighths-inch metal studs and finished with two layers of one-half-inch gypsum board plus an outer layer of five-eighths-inch gypsum board. Metal corner trim with one-and-one-half-inch legs is installed at exterior corners. Installation must comply with Gypsum Association design GA CM 2452 for the required two-hour column rating.
NOTE: INSTALL PER GA CM 2452 FOR 2 HR COLUMN RATING SCHEDULED WALL 5/8" GYP. BOARD (2) LAYERS 1/2" GYP. BOARD TUBE STEEL COLUMN PER PLAN 1 5/8" METAL STUDS METAL CORNER TRIM W/ 1 1/2" LEGS, TYP.
