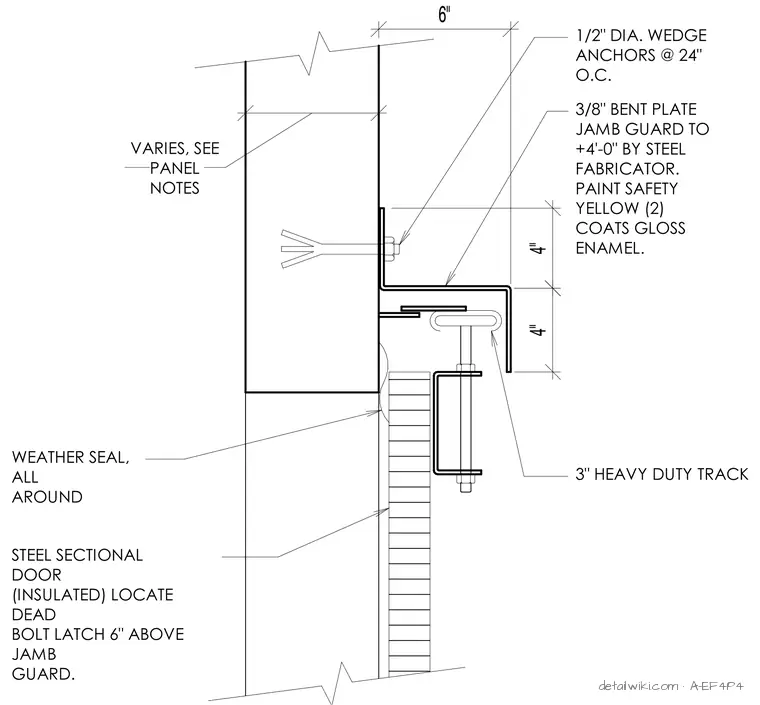

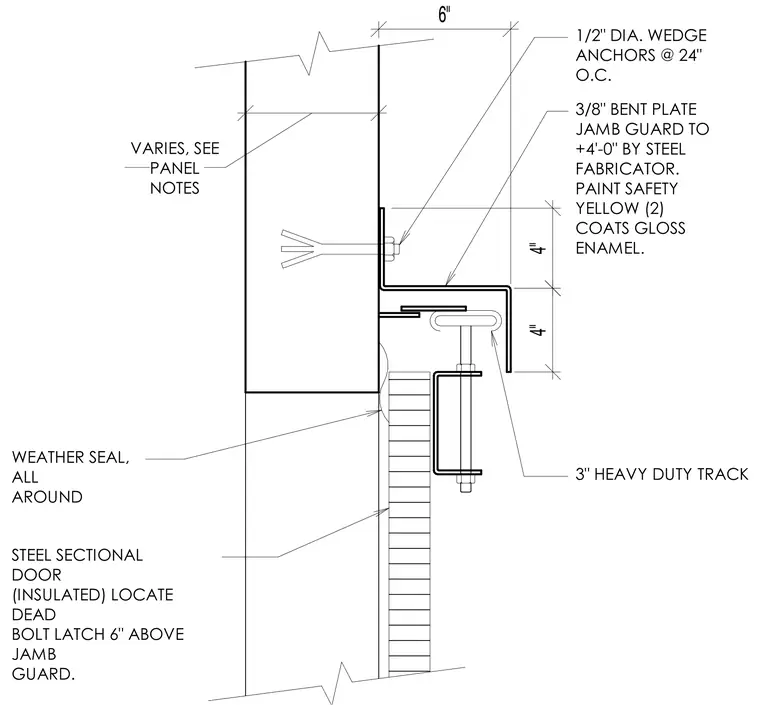

This assembly consists of a three-eighths inch thick bent steel plate jamb guard secured to the wall structure with one-half inch diameter wedge anchors spaced at twenty-four inches on center. The guard extends to a height of four feet above the finished floor and is finished with two coats of safety yellow gloss enamel. A three-inch heavy-duty track for the insulated steel sectional door is positioned adjacent to the guard. A weather seal is applied around the perimeter of the door, and the dead bolt latch is located six inches above the top of the jamb guard.
Text on the drawing
VARIES, SEE PANEL NOTES 4" 4" 6" 1/2" DIA. WEDGE ANCHORS @ 24" O.C. 3/8" BENT PLATE JAMB GUARD TO +4'-0" BY STEEL FABRICATOR. PAINT SAFETY YELLOW (2) COATS GLOSS ENAMEL. 3" HEAVY DUTY TRACK STEEL SECTIONAL DOOR (INSULATED) LOCATE DEAD BOLT LATCH 6" ABOVE JAMB GUARD. WEATHER SEAL, ALL AROUND N.T.S A601 1 HEAD AT SECTIONAL DOOR
