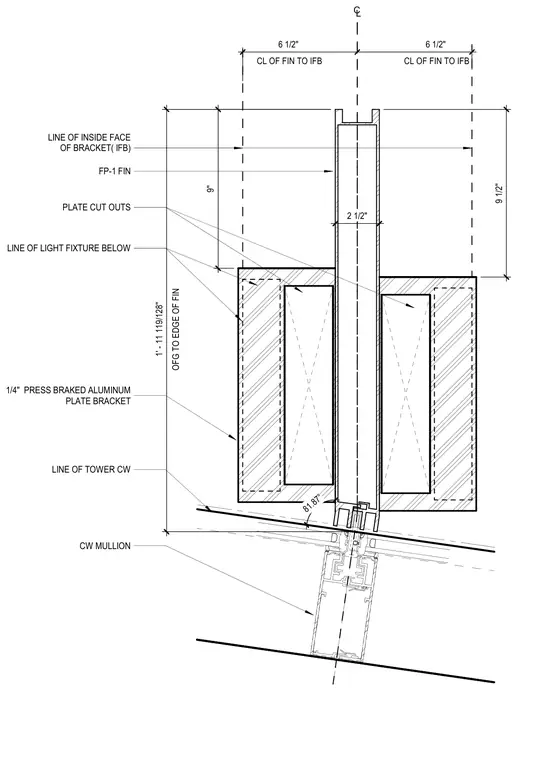

An FP-1 fin centers above a curtain wall mullion at an angle of 81.87 degrees, flanked by a quarter-inch press-braked aluminum plate bracket with plate cutouts. The assembly integrates with a light fixture positioned below, measuring six and one-half inches from centerline of fin to inside face of bracket. Dimensions establish clearances including a nine-inch height from the bracket edge to the fin layout and an overall extension of one foot eleven and one-hundred nineteen over one-hundred twenty-eighth inches to the edge of the fin.
C L O F F I N T O I F B 6 1 / 2 " C L O F F I N T O I F B 6 1 / 2 " O F G T O E D G E O F F I N 1 ' - 1 1 1 1 9 / 1 2 8 " 8 1 . 8 7 ° LINE OF TOWER CW 1/4" PRESS BRAKED ALUMINUM PLATE BRACKET LINE OF LIGHT FIXTURE BELOW FP-1 FIN PLATE CUT OUTS 2 1 / 2 " LINE OF INSIDE FACE OF BRACKET( IFB) CL CW MULLION 9 1 / 2 " 9 "
