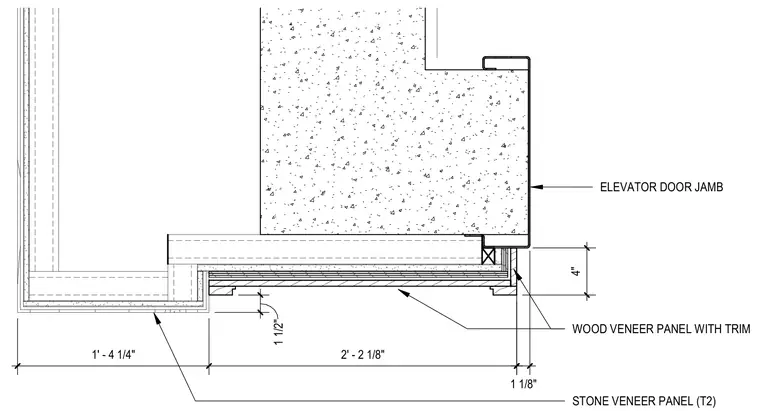

An elevator door jamb integrates with surrounding interior finishes including a stone veneer panel designated T2 and a wood veneer panel with trim. The assembly details the transition and dimensional clearances between the elevator frame and adjacent wall finishes.
4" 1 1/8" 2' - 2 1/8" 1' - 4 1/4" 1 1/2" WOOD VENEER PANEL WITH TRIM ELEVATOR DOOR JAMB STONE VENEER PANEL (T2)
