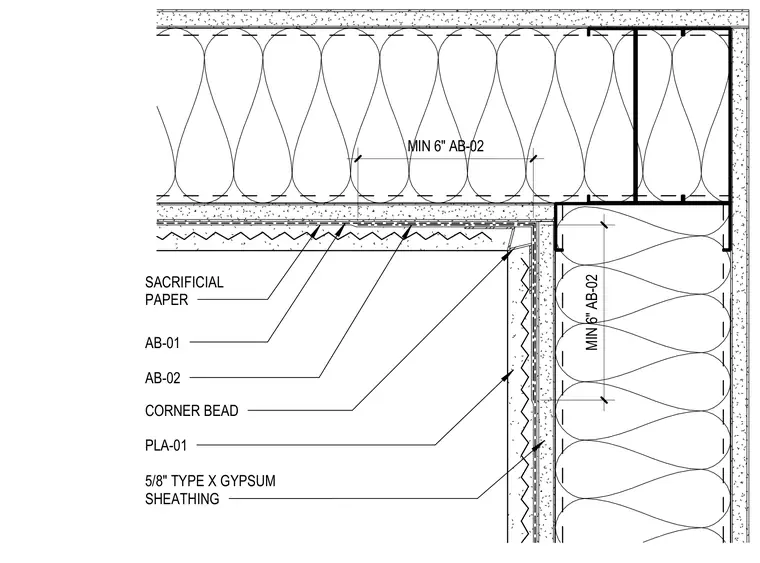

An inside corner detail of a cement plaster wall featuring a metal stud framing layout with batt insulation and five-eighths-inch Type X gypsum sheathing. The finish layers include a layer of sacrificial paper behind the cement plaster, designated as PLA-01, with waterproofing or barrier membranes AB-01 and AB-02 extending a minimum of six inches from the corner. A metal corner bead provides edge reinforcement for the plaster at the internal intersection.
CORNER BEAD AB-01 5/8" TYPE X GYPSUM SHEATHING SACRIFICIAL PAPER AB-02 PLA-01 MIN 6" AB-02 MIN 6" AB-02
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
