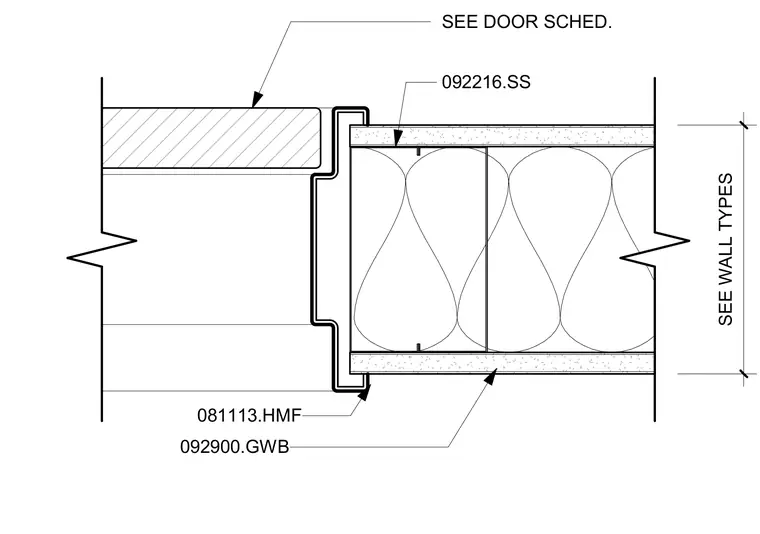

A hollow metal frame profile anchors into a steel stud partition framed with gypsum wallboard on both sides. The metal frame interfaces with the wall assembly, referencing standard door schedules and wall types.
092900.GWB 081113.HMF SEE DOOR SCHED. 092216.SS SEE WALL TYPES
