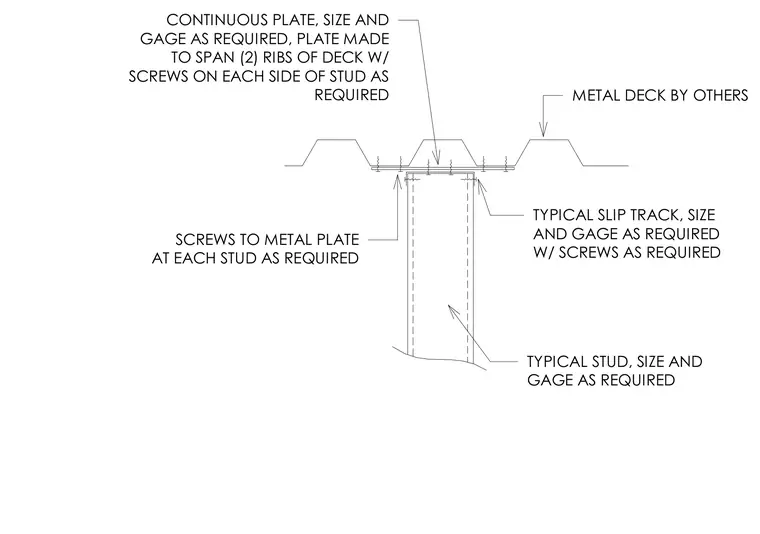

A cold-formed steel stud connects to a metal deck using a slip track and a continuous metal plate. The slip track is sized as required and fastened to the track flanges. A continuous plate spans two ribs of the metal deck and is secured with screws on each side of the stud. Screws fasten the cold-formed steel stud to the metal plate at each stud location.
METAL DECK BY OTHERS TYPICAL SLIP TRACK, SIZE AND GAGE AS REQUIRED W/ SCREWS AS REQUIRED TYPICAL STUD, SIZE AND GAGE AS REQUIRED SCREWS TO METAL PLATE AT EACH STUD AS REQUIRED CONTINUOUS PLATE, SIZE AND GAGE AS REQUIRED, PLATE MADE TO SPAN (2) RIBS OF DECK W/ SCREWS ON EACH SIDE OF STUD AS REQUIRED
