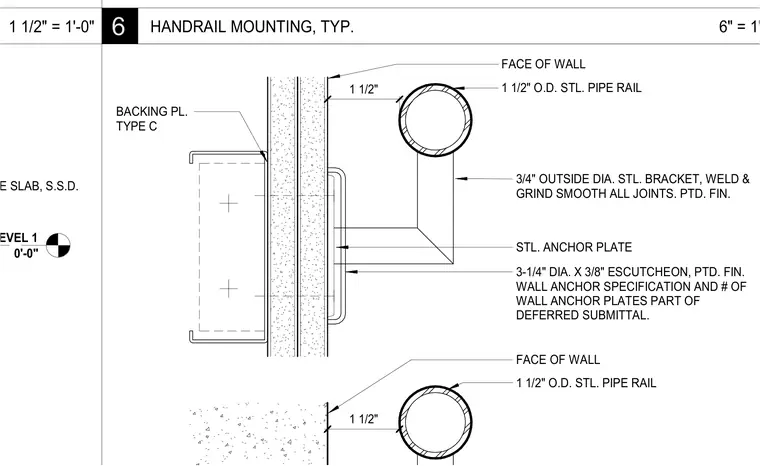

A wall-mounted steel handrail assembly includes a one-and-a-half-inch outside diameter steel pipe rail secured with a three-quarter-inch outside diameter steel bracket. All joints on the bracket are welded and ground smooth with a painted finish. A three-and-a-quarter-inch diameter by three-eighths-inch thick escutcheon covers the wall penetration at the steel anchor plate. Wall anchor specifications and the number of anchor plates are deferred submittals. A Type C backing plate is embedded behind the face of the wall.
3/4" OUTSIDE DIA. STL. BRACKET, WELD & GRIND SMOOTH ALL JOINTS. PTD. FIN. 1 1/2" O.D. STL. PIPE RAIL 3-1/4" DIA. X 3/8" ESCUTCHEON, PTD. FIN. WALL ANCHOR SPECIFICATION AND # OF WALL ANCHOR PLATES PART OF DEFERRED SUBMITTAL. STL. ANCHOR PLATE FACE OF WALL BACKING PL. TYPE C 1 1/2" 1 1/2" O.D. STL. PIPE RAIL FACE OF WALL 1 1/2" LEVEL 1 0'-0" CONCRETE SLAB, S.S.D. 6" = 1'-0" 6 HANDRAIL MOUNTING, TYP. 1 1/2" = 1'-0"
