Three-quarter-inch plywood panels with veneer mount to interior partitions using manufacturer-specified z-clips and one-and-a-quarter-inch blocking. Type 2 backing provides support behind the storage closet wall adjacent to the corridor concrete deck. A solid wood wall base sits above the sports flooring system, detailed per the finish schedule.

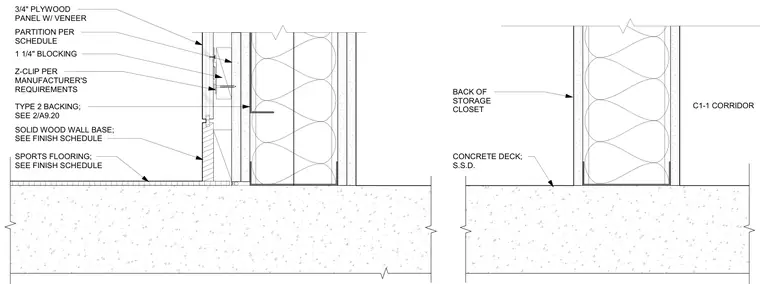

PARTITION PER SCHEDULE 3/4" PLYWOOD PANEL W/ VENEER 1 1/4" BLOCKING BACK OF STORAGE CLOSET C1-1 CORRIDOR CONCRETE DECK; S.S.D. SOLID WOOD WALL BASE; SEE FINISH SCHEDULE TYPE 2 BACKING; SEE SPORTS FLOORING; SEE FINISH SCHEDULE Z-CLIP PER MANUFACTURER'S REQUIREMENTS 2/A9.20
