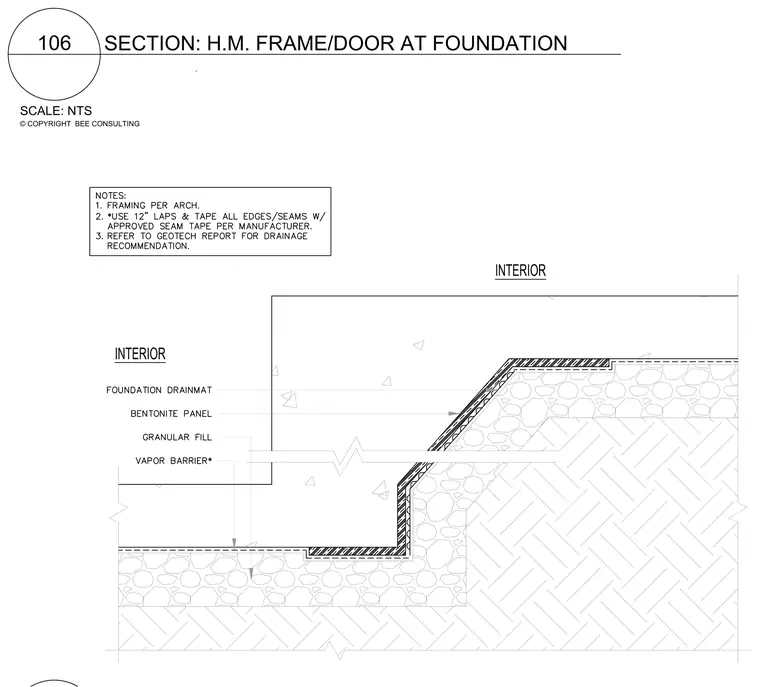

A foundation wall assembly transitions to a slab condition with exterior waterproofing and drainage layers. A foundation drainmat and bentonite panel are applied against the earthside foundation wall above granular fill and a vapor barrier. Edges and seams of the vapor barrier require twelve-inch laps taped with approved seam tape per the manufacturer. Framing is provided per architectural specifications, and drainage recommendations follow the geotechnical report.
© COPYRIGHT BEE CONSULTING © COPYRIGHT BEE CONSULTING © COPYRIGHT BEE CONSULTING 106 SECTION: H.M. FRAME/DOOR AT FOUNDATION SCALE: NTS INTERIOR INTERIOR
