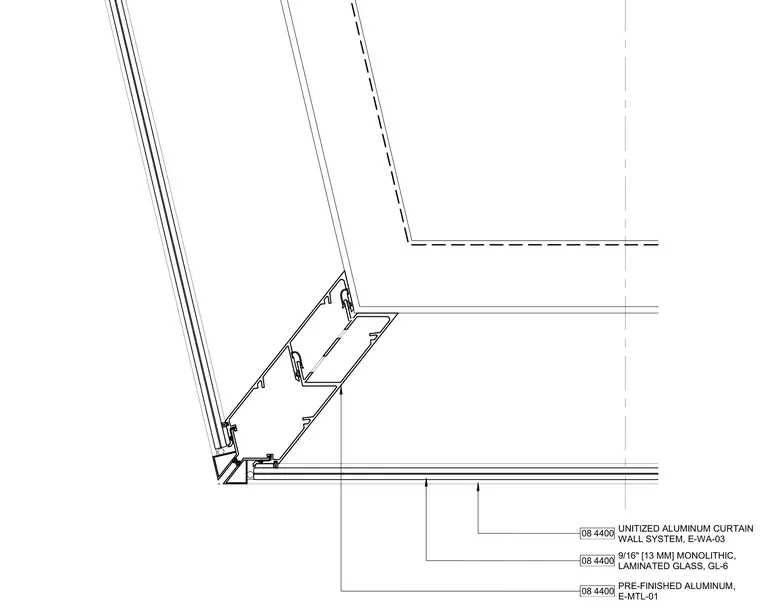

This plan detail shows an internal corner mullion connection within a unitized aluminum curtain wall system. The assembly features pre-finished aluminum framing members and 9/16-inch monolithic laminated glass panels designated as GL-6. The framing incorporates extruded aluminum profiles joined at the interior corner with specific sightlines and thermal breaks per the system design.
08 4400 UNITIZED ALUMINUM CURTAIN WALL SYSTEM, E-WA-03 08 4400 9/16" [13 MM] MONOLITHIC, LAMINATED GLASS, GL-6 08 4400 PRE-FINISHED ALUMINUM, E-MTL-01
