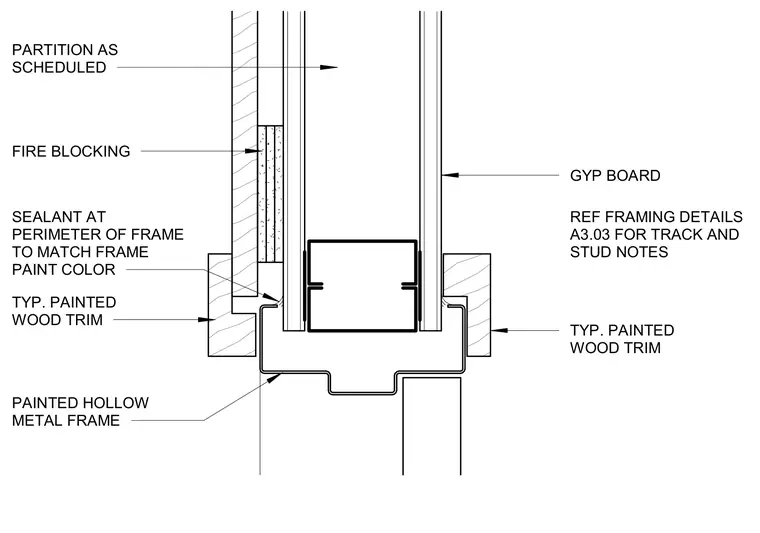

This interior partition detail shows a painted hollow metal frame flanked by painted wood trim and gypsum board layers. Fire blocking is installed within the stud cavity adjacent to the frame. A sealant bead is applied at the perimeter of the frame and matched to the frame paint color. The partition framing is sized per schedule and references sheet A3.03 for track and stud notes.
REF FRAMING DETAILS A3.03 FOR TRACK AND STUD NOTES GYP BOARD PAINTED HOLLOW METAL FRAME SEALANT AT PERIMETER OF FRAME TO MATCH FRAME PAINT COLOR PARTITION AS SCHEDULED TYP. PAINTED WOOD TRIM TYP. PAINTED WOOD TRIM FIRE BLOCKING
