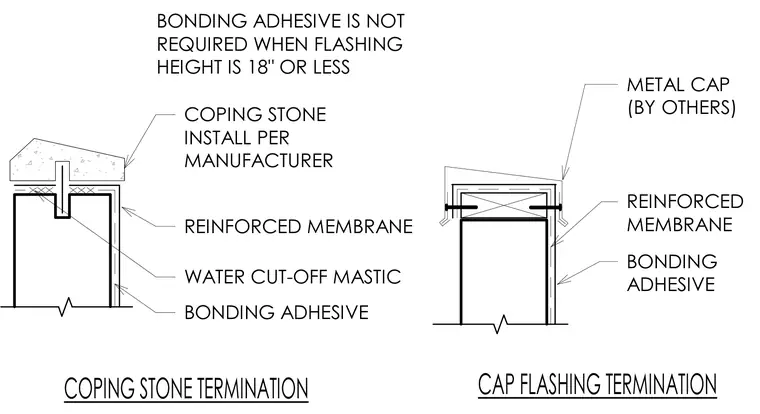

Reinforced membrane runs up the parapet wall and is sealed with water cut-off mastic and bonding adhesive. A coping stone is installed per manufacturer specifications at the top of the masonry wall. Alternatively, a metal cap provided by others is secured over the parapet with a reinforced membrane and bonding adhesive finish. Bonding adhesive is omitted when the flashing height is eighteen inches or less.
BONDING ADHESIVE IS NOT REQUIRED WHEN FLASHING HEIGHT IS 18" OR LESS COPING STONE INSTALL PER MANUFACTURER REINFORCED MEMBRANE WATER CUT-OFF MASTIC BONDING ADHESIVE METAL CAP (BY OTHERS) REINFORCED MEMBRANE BONDING ADHESIVE COPING STONE TERMINATION CAP FLASHING TERMINATION
