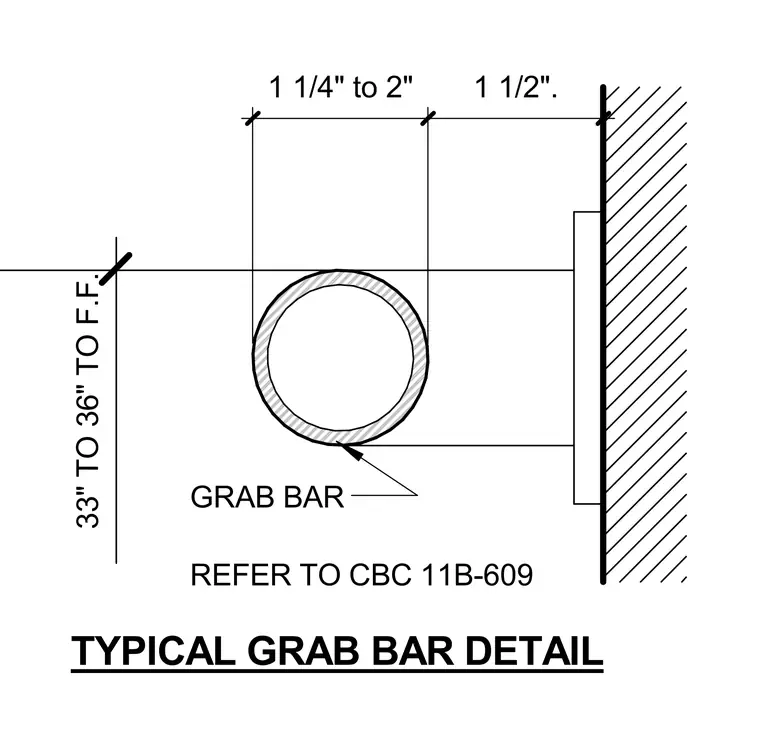

A typical grab bar is mounted to a wall at a height of thirty-three to thirty-six inches to the finished floor. A clearance of one and one-half inches is maintained between the grab bar and the mounting wall surface. The overall spacing and installation comply with California Building Code Section 11B-609.
1 1/4" to 2" 1 1/2". GRAB BAR 33" TO 36" TO F.F. TYPICAL GRAB BAR DETAIL REFER TO CBC 11B-609
