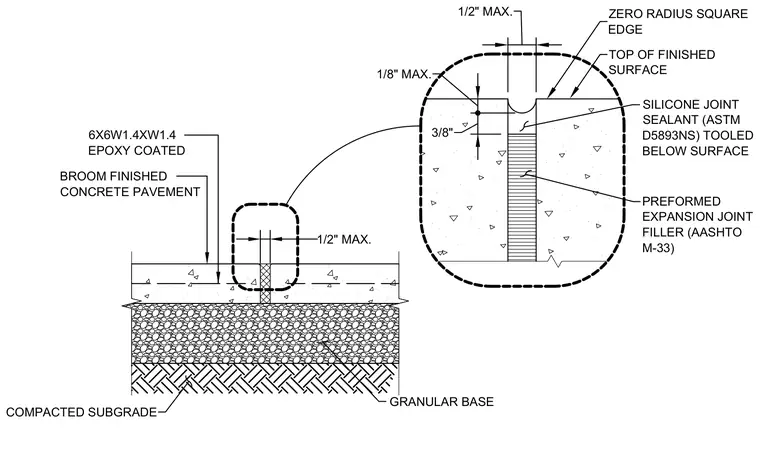

An epoxy-coated welded wire reinforcement, specifically 6X6-W1.4/W1.4, reinforces the broom-finished concrete pavement resting on a granular base and compacted subgrade. The pavement terminates at a zero-radius square edge at the joint interface. A preformed expansion joint filler complying with AASHTO M-33 fills the joint gap. The top of the joint is sealed with silicone joint sealant conforming to ASTM D5893NS, tooled 3/8 inch below the finished surface with maximum gap dimensions specified.
1/2" MAX. 1/8" MAX. 1/2" MAX. 6X6W1.4XW1.4 EPOXY COATED BROOM FINISHED CONCRETE PAVEMENT COMPACTED SUBGRADE TOP OF FINISHED SURFACE PREFORMED EXPANSION JOINT FILLER (AASHTO M-33) SILICONE JOINT SEALANT (ASTM D5893NS) TOOLED BELOW SURFACE 3/8" GRANULAR BASE ZERO RADIUS SQUARE EDGE
