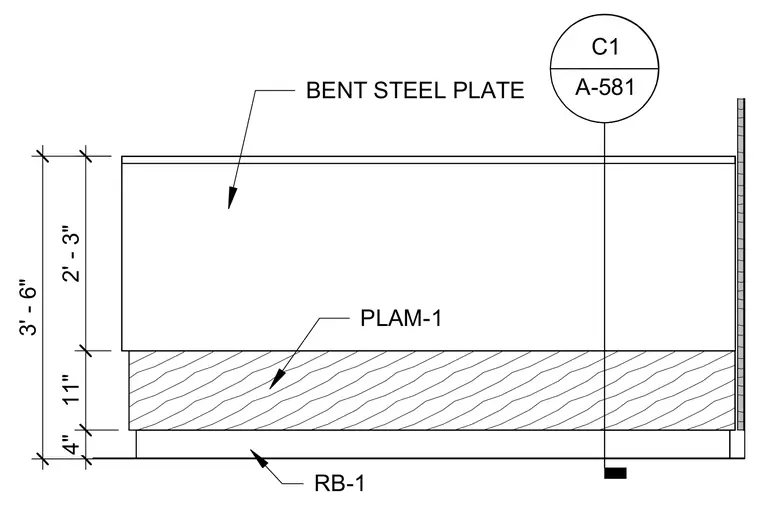

A bent steel plate forms the upper portion of the transaction counter side assembly above a section finished with plastic laminate designated PLAM-1. The base of the counter incorporates material RB-1 with an overall vertical dimension of three feet six inches. Component heights measure four inches for the base, eleven inches for the plastic laminate section, and two feet three inches for the upper bent steel plate.
