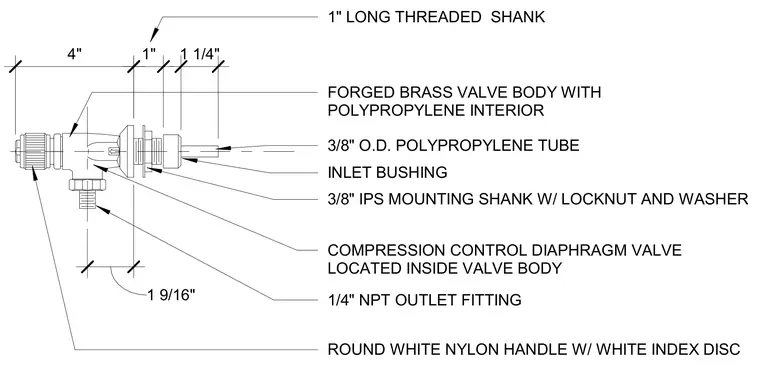

A forged brass valve body with a polypropylene interior houses a compression control diaphragm valve, operated by a round white nylon handle with a white index disc. The assembly mounts through a panel using a one-inch long threaded shank with a three-eighths-inch IPS mounting shank, locknut, and washer, along with an inlet bushing. Water connects via a one-quarter-inch NPT outlet fitting and a three-eighths-inch outer diameter polypropylene tube.
FORGED BRASS VALVE BODY WITH POLYPROPYLENE INTERIOR 3/8" IPS MOUNTING SHANK W/ LOCKNUT AND WASHER INLET BUSHING 1/4" NPT OUTLET FITTING COMPRESSION CONTROL DIAPHRAGM VALVE LOCATED INSIDE VALVE BODY ROUND WHITE NYLON HANDLE W/ WHITE INDEX DISC 3/8" O.D. POLYPROPYLENE TUBE 1" LONG THREADED SHANK 4" 1" 1 1/4" 1 9/16"
