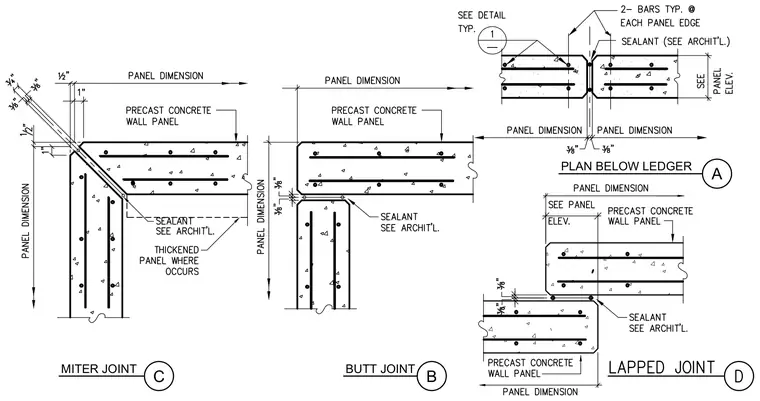

Precast concrete wall panels are joined at corners and edges using miter, butt, lapped, and ledger plan configurations. Each panel features two reinforcing bars typically at each panel edge. Joints are sealed with sealant as specified per architectural drawings, maintaining consistent joint widths such as three-eighths of an inch. Thickened precast concrete wall panels occur at specific corner conditions as indicated.
