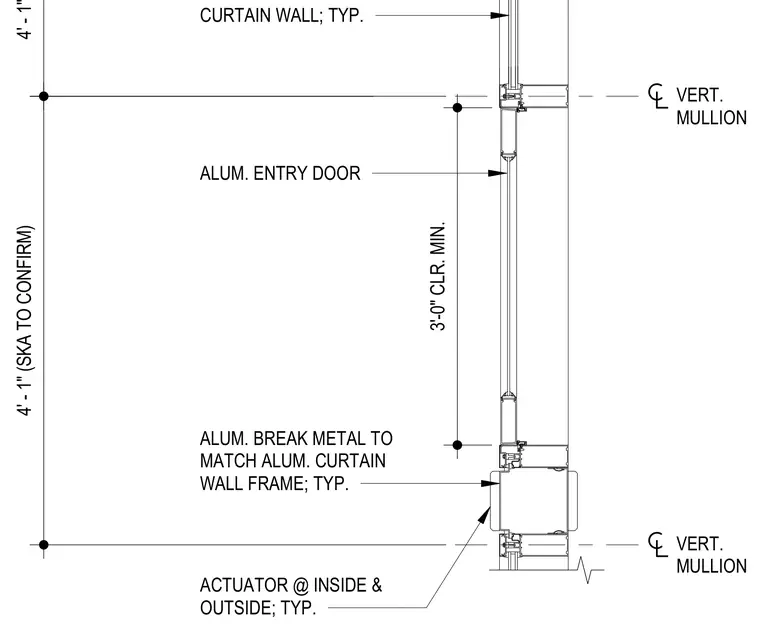

An aluminum entry door is set within a typical aluminum curtain wall frame system, aligned with vertical mullions. Aluminum break metal is provided to match the curtain wall frame profile. Actuators are positioned at both the inside and outside faces of the assembly. Dimensioning indicates a three-foot minimum clear opening with overall spacing spans of four feet one inch.
4' - 1" (SKA TO CONFIRM) 4' - 1" (SKA TO CONFIRM) 3'-0" CLR. MIN. VERT. MULLION VERT. MULLION ACTUATOR @ INSIDE & OUTSIDE; TYP. CURTAIN WALL; TYP. ALUM. ENTRY DOOR ALUM. BREAK METAL TO MATCH ALUM. CURTAIN WALL FRAME; TYP.
