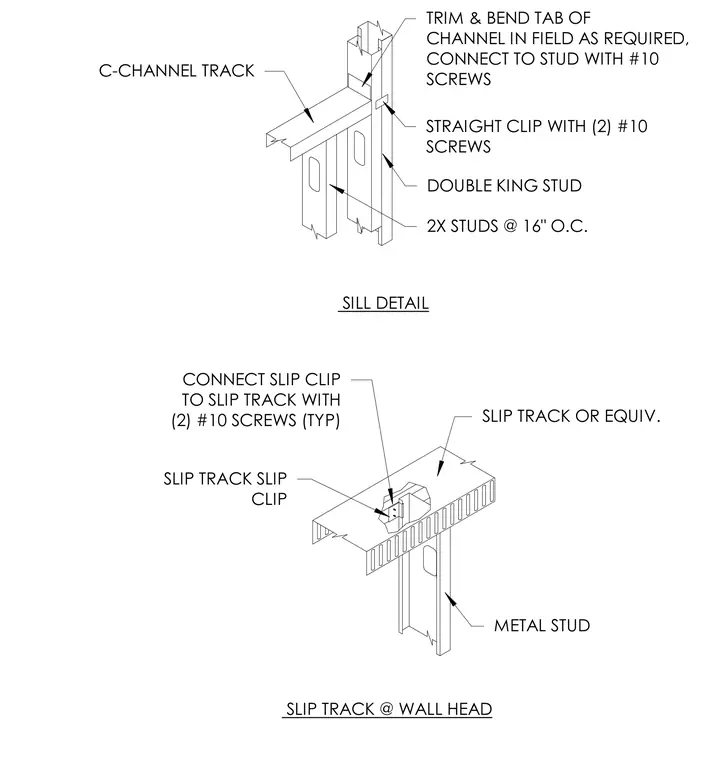

Cold-formed metal framing details showing a slip track head connection and a c-channel sill connection with double king studs. The wall head assembly features a metal stud framing into a slip track or equivalent, secured with a slip track slip clip fastened using two number ten screws typically. The sill assembly consists of a c-channel track with a trimmed and bent tab in the field connected to the stud with number ten screws, double king studs, and two-by studs spaced at sixteen inches on center joined with a straight clip and two number ten screws.
SLIP TRACK @ WALL HEAD SILL DETAIL CONNECT SLIP CLIP TO SLIP TRACK WITH (2) #10 SCREWS (TYP) SLIP TRACK SLIP CLIP METAL STUD SLIP TRACK OR EQUIV. 2X STUDS @ 16" O.C. DOUBLE KING STUD STRAIGHT CLIP WITH (2) #10 SCREWS TRIM & BEND TAB OF CHANNEL IN FIELD AS REQUIRED, CONNECT TO STUD WITH #10 SCREWS C-CHANNEL TRACK
