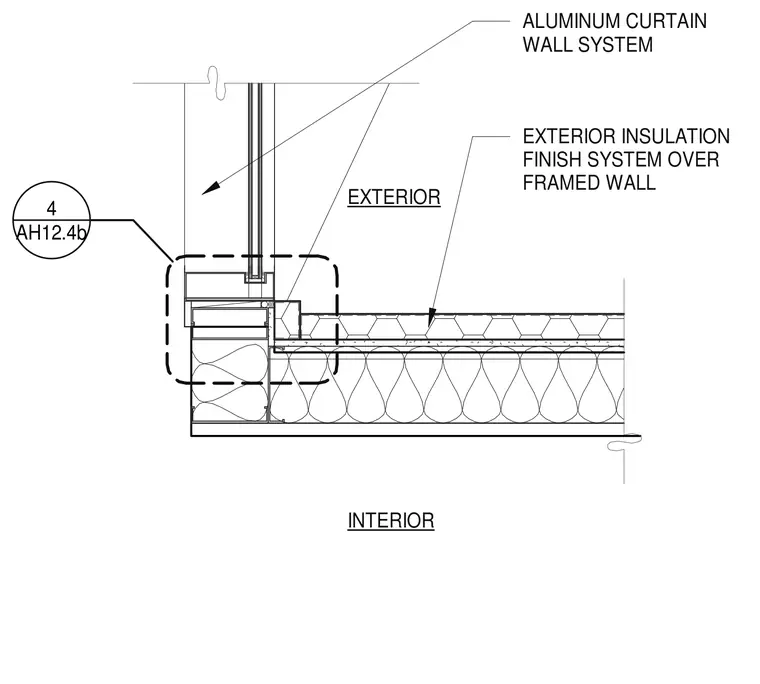

An aluminum curtain wall system meets an exterior insulation finish system over a framed wall at an exterior building corner. The assembly transitions from glazed framing to a framed backup wall with continuous exterior insulation. A detail reference tag indicates continuation of the corner condition on sheet AH12.4b.
EXTERIOR INTERIOR ALUMINUM CURTAIN WALL SYSTEM EXTERIOR INSULATION FINISH SYSTEM OVER FRAMED WALL AH12.4b 4
