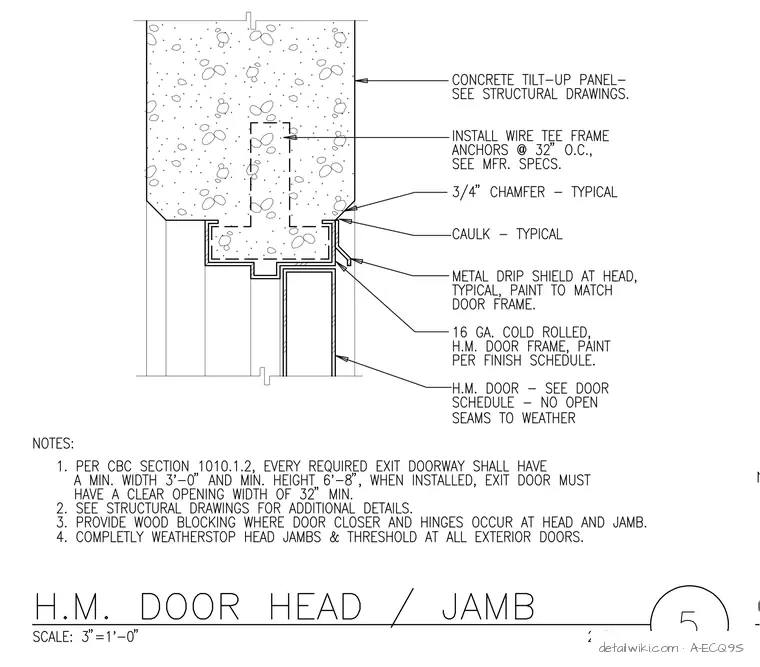

A sixteen-gauge cold-rolled hollow metal door frame is set into a concrete tilt-up wall panel. Wire tee frame anchors are installed at thirty-two inches on center per manufacturer specifications. A three-quarter-inch chamfer is provided at the concrete corner with continuous caulking. A metal drip shield is installed at the head, painted to match the door frame. The hollow metal door is sized per the door schedule with no open seams to weather.
