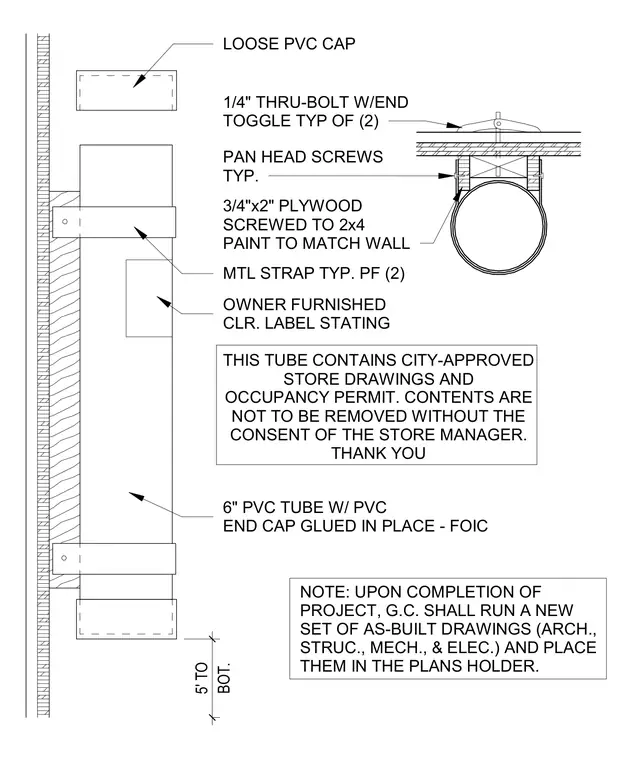

A six-inch PVC tube with a glued-in PVC end cap is mounted vertically to a wall using typical metal straps. The tube is backed by three-quarter-inch by two-inch plywood screwed to two-by-four blocking and painted to match the wall. A loose PVC cap closes the top, while a quarter-inch thru-bolt with an end toggle secures the upper assembly. An owner-furnished clear label is affixed to the tube with mandatory project storage text.
NOTE: UPON COMPLETION OF PROJECT, G.C. SHALL RUN A NEW SET OF AS-BUILT DRAWINGS (ARCH., STRUC., MECH., & ELEC.) AND PLACE THEM IN THE PLANS HOLDER. 6" PVC TUBE W/ PVC END CAP GLUED IN PLACE - FOIC THIS TUBE CONTAINS CITY-APPROVED STORE DRAWINGS AND OCCUPANCY PERMIT. CONTENTS ARE NOT TO BE REMOVED WITHOUT THE CONSENT OF THE STORE MANAGER. THANK YOU OWNER FURNISHED CLR. LABEL STATING MTL STRAP TYP. PF (2) 3/4"x2" PLYWOOD SCREWED TO 2x4 PAINT TO MATCH WALL PAN HEAD SCREWS TYP. 1/4" THRU-BOLT W/END TOGGLE TYP OF (2) LOOSE PVC CAP BOT. 5' TO
