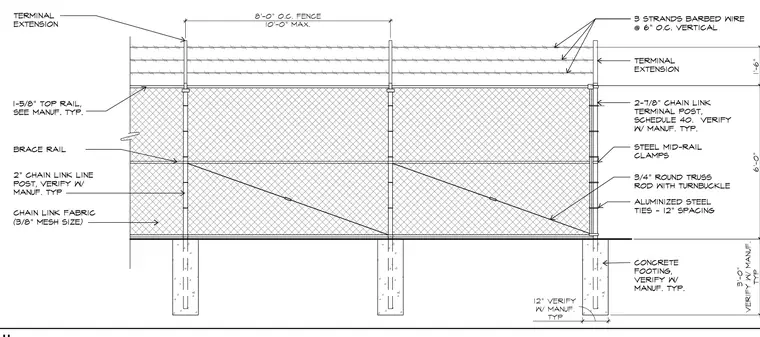

The assembly features a chain link fabric with three-eighth-inch mesh size secured to two-inch chain link line posts and two-and-seven-eighth-inch Schedule 40 chain link terminal posts using aluminized steel ties at twelve-inch spacing. A one-and-five-eighth-inch top rail and a brace rail tie the posts together, supported by steel mid-rail clamps and a three-quarter-inch round truss rod with a turnbuckle for bracing. Terminal extensions at the top hold three strands of barbed wire spaced at six inches on center vertically. Posts are embedded into concrete footings.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
