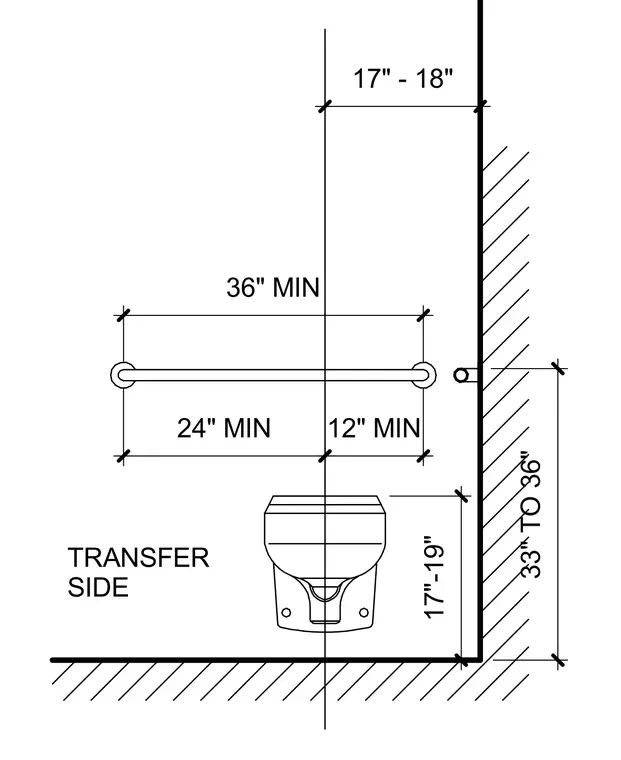

This elevation shows the accessibility clearances and grab bar placement requirements for an accessible water closet stall on the transfer side. A horizontal rear grab bar is positioned between thirty-three and thirty-six inches above the finished floor, extending seventeen to eighteen inches from the side wall to the centerline, with a twelve-inch minimum on one side and a twenty-four-inch minimum on the other. A side grab bar provides a thirty-six-inch minimum length overall. The water closet centerline is located seventeen to nineteen inches from the adjacent side wall.
