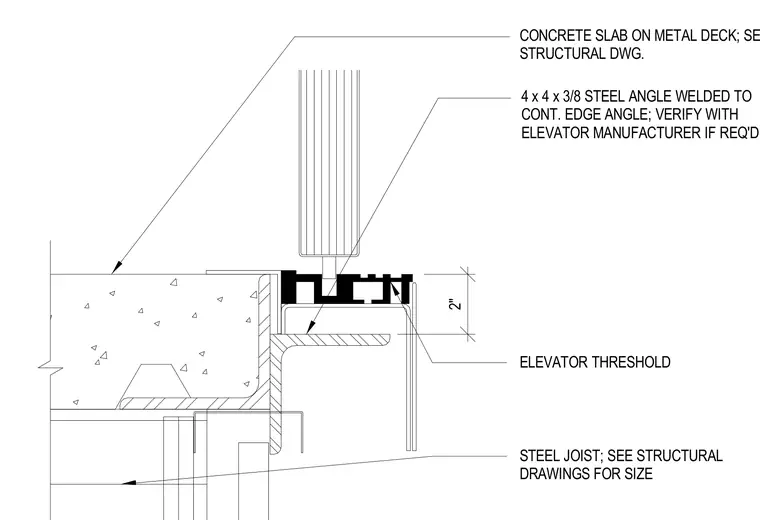

An elevator threshold is supported on a 4x4x3/8-inch steel angle that is welded to a continuous edge angle framing the slab edge. The concrete slab on metal deck is sized per structural drawings and bears adjacent to the edge angle. A steel joist positioned below supports the assembly and is also sized per structural drawings.
2" 4 x 4 x 3/8 STEEL ANGLE WELDED TO CONT. EDGE ANGLE; VERIFY WITH ELEVATOR MANUFACTURER IF REQ'D CONCRETE SLAB ON METAL DECK; SEE STRUCTURAL DWG. STEEL JOIST; SEE STRUCTURAL DRAWINGS FOR SIZE ELEVATOR THRESHOLD
