A base cabinet assembly features a one-and-a-half-inch plywood countertop and plastic laminate cabinet frames scribed and sealed to the adjacent wall. An adjustable shelf includes a three-millimeter PVC edge band and shelf pins. The unit rests on a floor with a rubber base applied using adhesive.

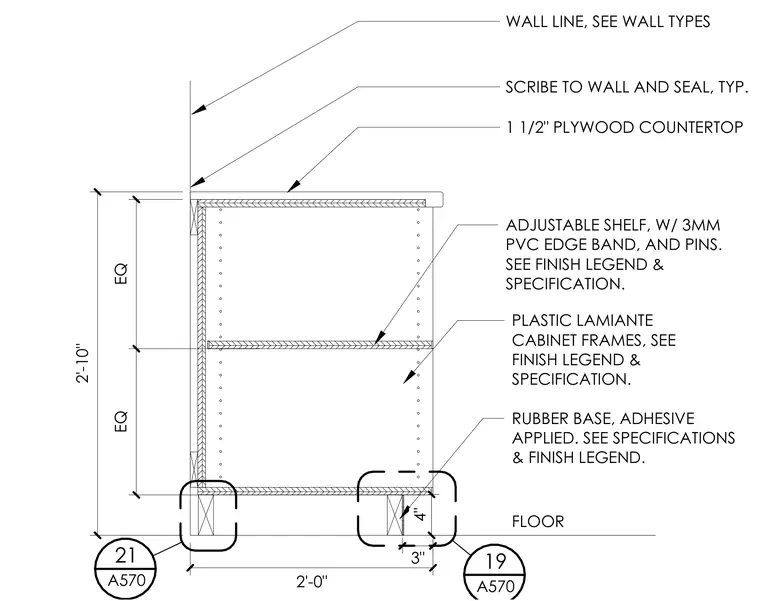

FLOOR 2'-10" EQ EQ WALL LINE, SEE WALL TYPES SCRIBE TO WALL AND SEAL, TYP. 2'-0" 1 1/2" PLYWOOD COUNTERTOP ADJUSTABLE SHELF, W/ 3MM PVC EDGE BAND, AND PINS. SEE FINISH LEGEND & SPECIFICATION. PLASTIC LAMIANTE CABINET FRAMES, SEE FINISH LEGEND & SPECIFICATION. RUBBER BASE, ADHESIVE APPLIED. SEE SPECIFICATIONS & FINISH LEGEND. 3" 4" A570 21 A570 19
