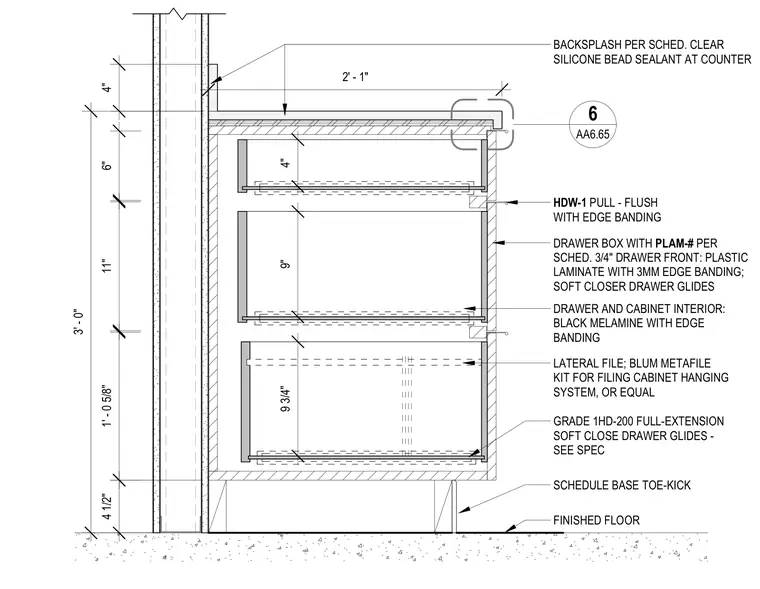

The base cabinet rests on a scheduled toe-kick base above the finished floor grade. Drawer boxes feature plastic laminate fronts with three-millimeter edge banding and full-extension soft-close drawer glides. The interior consists of black melamine with edge banding. The bottom drawer includes a lateral file hanging system using a Blum Metafile kit or equal. A clear silicone bead sealant is applied at the countertop backsplash junction.
DRAWER AND CABINET INTERIOR: BLACK MELAMINE WITH EDGE BANDING SCHEDULE BASE TOE-KICK DRAWER BOX WITH PLAM-# PER SCHED. 3/4" DRAWER FRONT: PLASTIC LAMINATE WITH 3MM EDGE BANDING; SOFT CLOSER DRAWER GLIDES BACKSPLASH PER SCHED. CLEAR SILICONE BEAD SEALANT AT COUNTER FINISHED FLOOR GRADE 1HD-200 FULL-EXTENSION SOFT CLOSE DRAWER GLIDES - SEE SPEC 4 1/2" HDW-1 PULL - FLUSH WITH EDGE BANDING 4" 6" 9 3/4" 4" AA6.65 6 3' - 0" 11" 9" 1' - 0 5/8" 2' - 1" LATERAL FILE; BLUM METAFILE KIT FOR FILING CABINET HANGING SYSTEM, OR EQUAL
