Classroom Media Cabinet Input Plate and A/V Connections

Materials

Elements

Columns Walls Ceilings Millwork / Casework Connections / Plates

About this detail

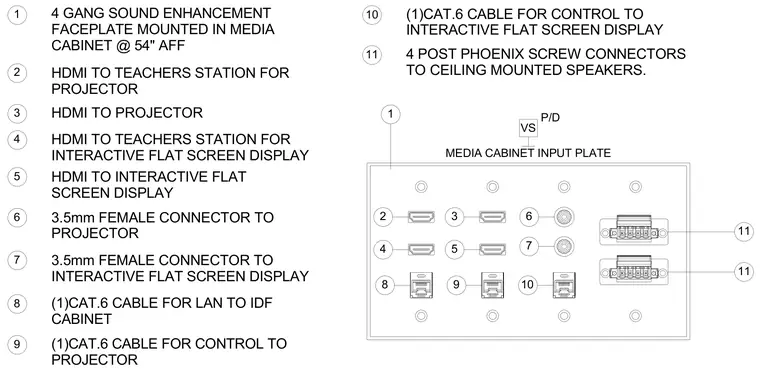

A four-gang sound enhancement faceplate is mounted in a media cabinet at fifty-four inches above finished floor. The plate features HDMI connections to the teacher station and projector, HDMI connections for an interactive flat screen display, and three-point-five millimeter female audio connectors. Additional connections include a CAT.6 cable for local area network access to the intermediate distribution frame cabinet, CAT.6 control cables for the projector and interactive display, and four-post Phoenix screw connectors for ceiling-mounted speakers.
