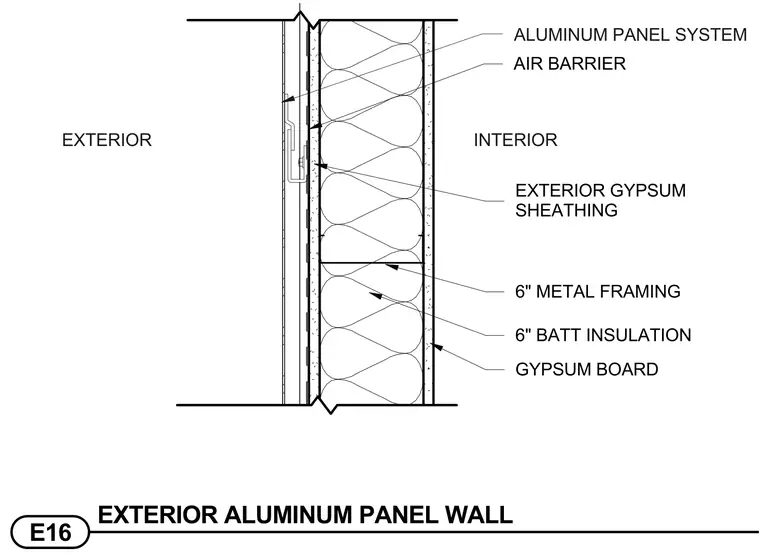

An exterior aluminum panel system is mounted over an air barrier and exterior gypsum sheathing supported by six-inch metal framing. Six-inch batt insulation fills the cavity between the metal studs, with gypsum board finish on the interior side.
EXTERIOR INTERIOR E16 EXTERIOR ALUMINUM PANEL WALL GYPSUM BOARD 6" METAL FRAMING AIR BARRIER EXTERIOR GYPSUM SHEATHING 6" BATT INSULATION ALUMINUM PANEL SYSTEM
