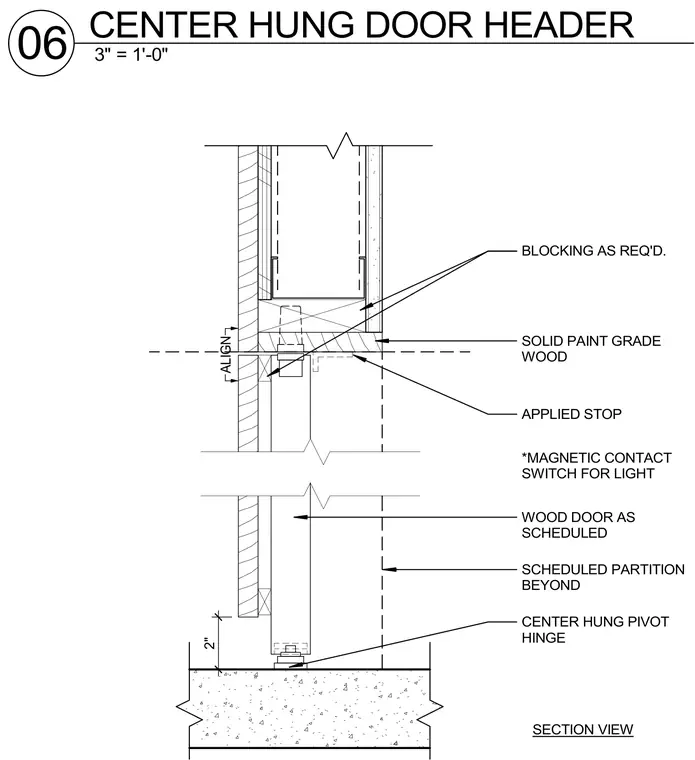

A center-hung wood door swings within a scheduled partition with required wood blocking at the header. A solid paint-grade wood head member receives an applied stop and integrates a magnetic contact switch for lighting. The door leaf aligns with a center-hung pivot hinge mounted at the floor slab threshold.
BLOCKING AS REQ'D. SECTION VIEW ALIGN CENTER HUNG PIVOT HINGE SCHEDULED PARTITION BEYOND WOOD DOOR AS SCHEDULED SOLID PAINT GRADE WOOD APPLIED STOP 2" *MAGNETIC CONTACT SWITCH FOR LIGHT 3" = 1'-0" 06 CENTER HUNG DOOR HEADER
