Architectural · A-EBC6H

Reception Desk Millwork and Security Glass Assembly

Materials

Cold-formed Steel Timber / Wood Glass / Glazing Aluminum Metal (misc.)Gypsum / Drywall

Elements

Walls Curtain Walls Ceilings Floors / Slabs Decks Bracing Millwork / Casework

Connections

Bracing Connection

About this detail

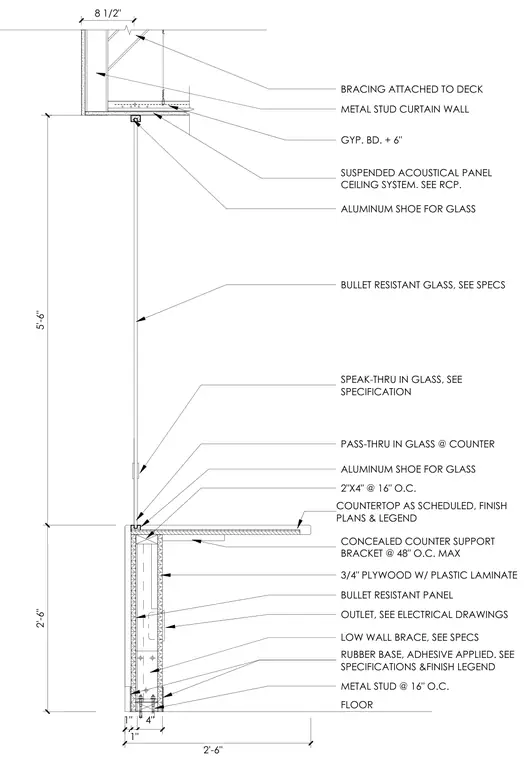

A security reception desk assembly is supported by a metal stud framing base spaced at sixteen inches on center with a rubber base adhesive-applied at the floor. The desk incorporates three-quarter-inch plywood finished with plastic laminate, concealed counter support brackets spaced at a maximum of forty-eight inches on center, and internal bullet-resistant panels. Bullet-resistant glass extends upward from the countertop, secured in upper and lower aluminum shoes for glass. The glazing incorporates a pass-thru at the counter and a speak-thru unit. The desk counter height is two feet six inches, and the security glass extends five feet six inches above the counter to a suspended acoustical panel ceiling system framed with metal stud curtain wall construction and deck bracing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
