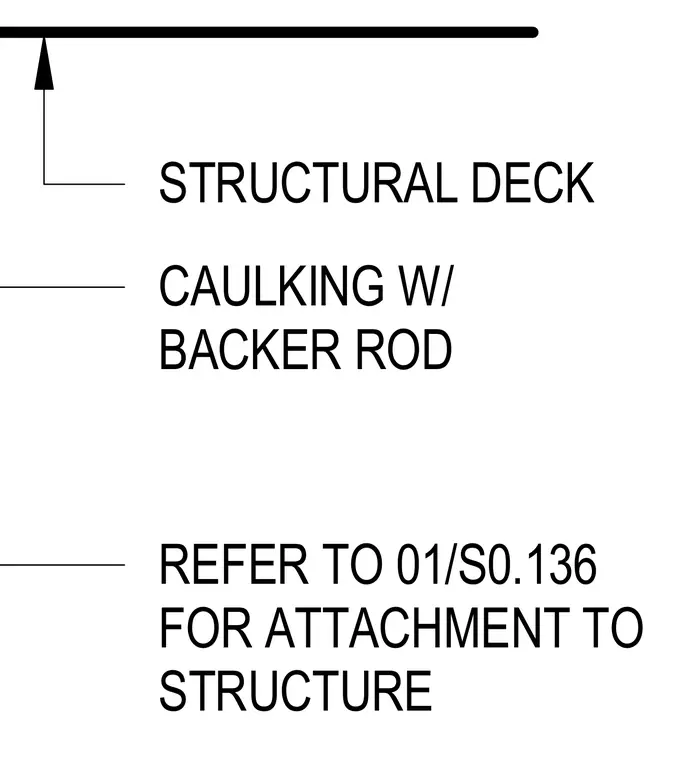

The structural deck joint assembly features caulking installed with a backer rod for sealing against the structural deck. Attachment to the underlying structure is coordinated through structural drawings referenced on the detail.
STRUCTURAL DECK CAULKING W/ BACKER ROD REFER TO 01/S0.136 FOR ATTACHMENT TO STRUCTURE
