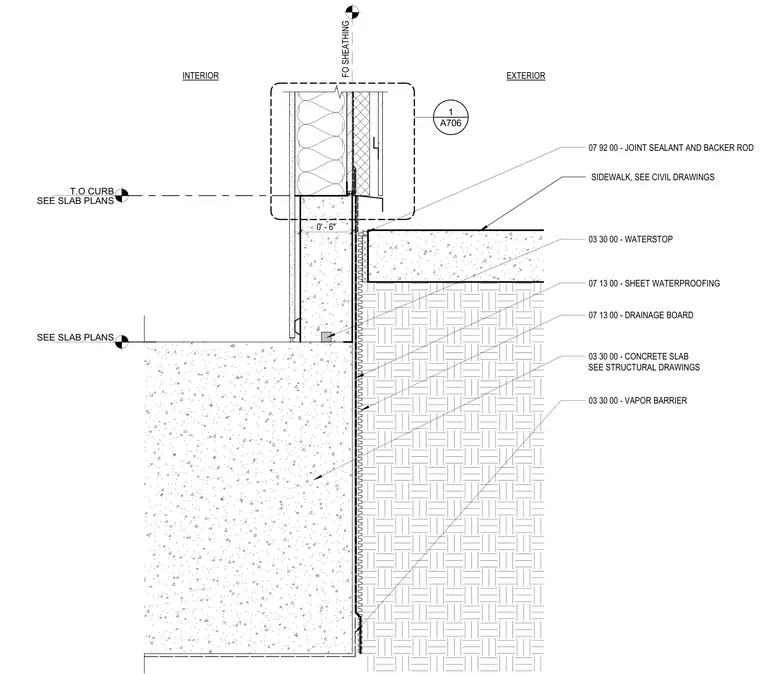

This wall section details the transition where an exterior wall meets a concrete sidewalk curb above the floor slab. The assembly features a cast-in-place concrete slab and curb foundation protected by a continuous vapor barrier and sheet waterproofing on the exterior face, coupled with a drainage board. A waterstop is embedded in the concrete joint, while joint sealant and backer rod seal the junction between the curb and the exterior wall system.
07 92 00 - JOINT SEALANT AND BACKER ROD SIDEWALK, SEE CIVIL DRAWINGS 07 13 00 - SHEET WATERPROOFING 03 30 00 - VAPOR BARRIER EXTERIOR INTERIOR 03 30 00 - WATERSTOP T.O CURB SEE SLAB PLANS SEE SLAB PLANS 07 13 00 - DRAINAGE BOARD FO SHEATHING A706 1 03 30 00 - CONCRETE SLAB SEE STRUCTURAL DRAWINGS 0' - 6"
