Precast concrete treads and risers bear on welded steel angle supports attached to the structural framing. The assembly features four five-sixteenths by five-sixteenths inch deep nosing grooves extending across the full length of each precast stair. A metal stud is welded to the steel plate below, and an HSS steel stringer provides the primary structural support for the stair carriage.

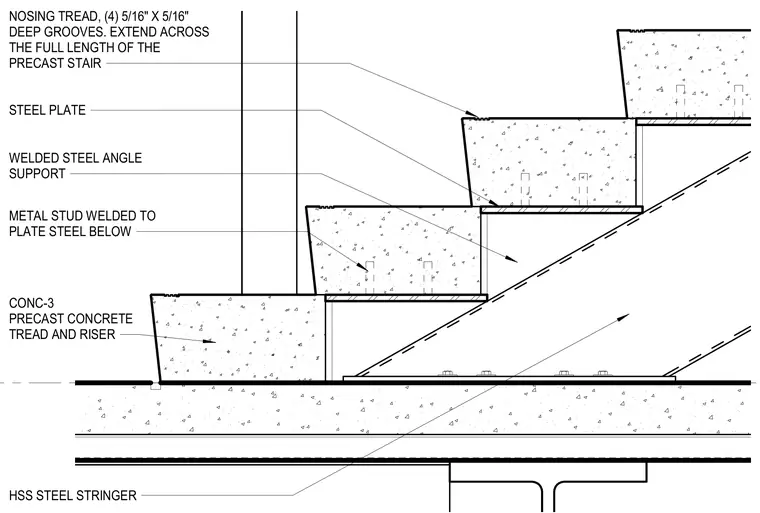

HSS STEEL STRINGER CONC-3 PRECAST CONCRETE TREAD AND RISER METAL STUD WELDED TO PLATE STEEL BELOW STEEL PLATE WELDED STEEL ANGLE SUPPORT NOSING TREAD, (4) 5/16" X 5/16" DEEP GROOVES. EXTEND ACROSS THE FULL LENGTH OF THE PRECAST STAIR
